Multifunctional Crawler Pile

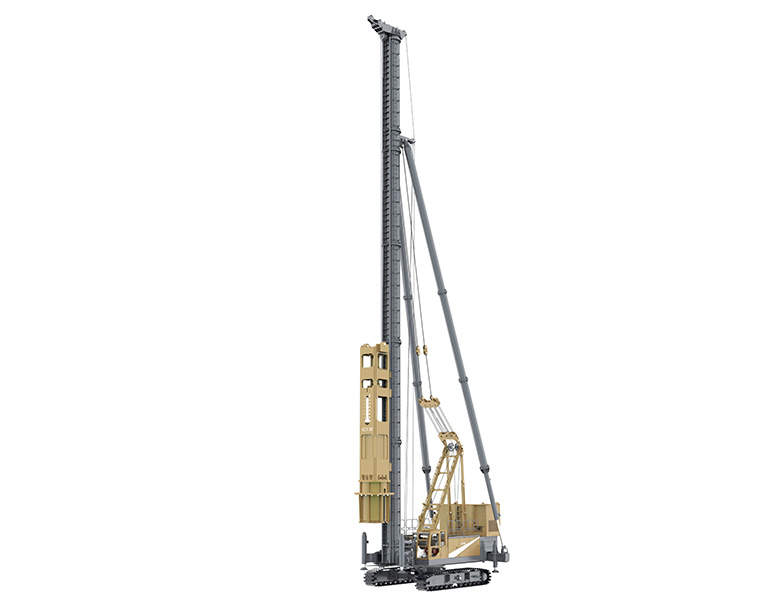

JU180 Multifunctional Crawler Pile Frame

Features
1.Multi functional: It can be equipped with working devices such as long spiral, hydraulic hammer/down the hole hammer, single axis/double axis/multi axis mixer, etc., to meet the construction needs of different pile types, geology and environments.
2.Strong construction capability：The column height is 42 meters, the drilling depth can reach 36 meters, and the drilling diameter is 1.2 meters, which meets the needs of most pile foundation construction.
3.High configuration ensures overall stability: The hydraulic system adopts products from top domestic suppliers, with front and rear four leg oil cylinder design, optimized overall structural matching, and a ground pressure ratio of 194kPa, resulting in high overall stability.
4.High construction efficiency: Matched with Dongfeng Cummins 194KW engine to ensure strong power output during construction.
5.Convenient and flexible transition, low cost: The tracked vehicle allows for flexible walking and transportation, resulting in low transition costs.

Technical data

Item		Unit	Data
Column	Height	m	42
	Diameter of cylinder	mm	Φ914
	Guideway	mm	Φ102×600
	Max.pulling force	t	70
	Angle adjustment in left and right directions	°	±1.5
	Adjustment travel in front and rear directions	mm	200
	Diagonal support cylinder stroke	mm	2800
Main winch	Max.pulling force of single rope	t	12
	Max.speed of single rope	m/min	41-58
	Diameter of wire rope	mm	22
	Length of wire rope	m	620
Aux.winch	Max.pulling force of single rope	t	12
	Max.speed of single rope	m/min	41-58
	Diameter of wire rope	mm	22
	Length of wire rope	m	580
Third winch	Max.pulling force of single rope	t	14
	Max.speed of single rope	m/min	38-50
	Diameter of wire rope	mm	22
	Length of wire rope	m	170
Lifting winch	Max.pulling force of single rope	t	14
	Max.speed of single rope	m/min	32-43
	Diameter of wire rope	mm	22
	Length of wire rope	m	240
Swing speed		rpm	2.7
Engine	Brand		Dongfeng Cummins
	Model		L9CS4-264
	Emission standards		China IV standerd
	Power	kW	194
	Rated speed	rpm	2000
	Fuel tank capacity	L	450
Track	Width: expand/collapse	mm	4900/3400
	Width of track plate	mm	850
	Ground length	mm	5370
	Travel speed	km/hr	0.85
	Grade ability		30%
	Average ground pressure	kPa	177
	Max.traveling weight	t	165
Counterweight		t	22
Main machine weight(without column、counterweight)		t	62
