Hydraulic Grab

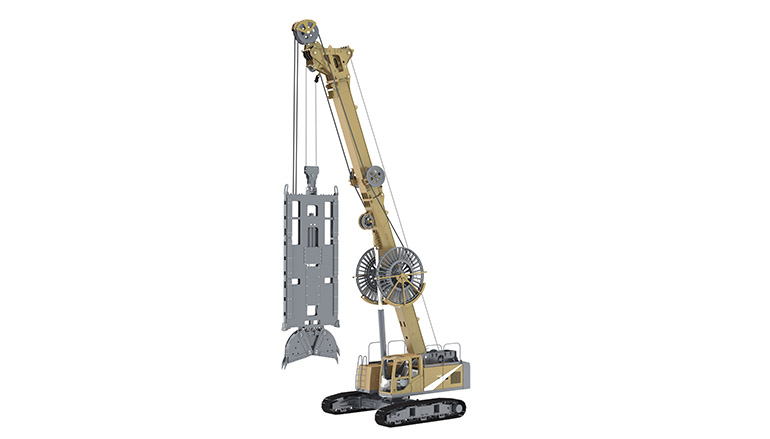

FG30 Hydraulic Grab

Features
1.Good maneuverability:
The main engine weighs 32 tons and can be transported as a whole without disassembly, with less transport costs;
2.Compact design:
The chassis can be extended up to 2.9 meters, with a maximum expansion of 4.3 meters. The machine has strong pass ability and wide adaptability, and the knife frame can rotate 90°for construction, meeting the needs of special and narrow construction sites, and meeting the construction needs of small river embankments in China;
3.Strong construction capability:
The main oil cylinder has a thrust of 80 tons, enhancing its ability to break hard bottom layers such as medium thick sand layers;
4.High homework efficiency:
The maximum lifting speed of the main winch is 100m/min, and the lifting and lowering speeds are 10% higher than those of the same level, resulting in higher working efficiency;
5.Low consumption and energy saving:
The diesel engine meets the latest National Ⅳ emission standards and is energy-efficient and environmentally friendly.

Technical data

Item	Unit	FG30	FG90
Engine model		B6.7CS4-220C	QSZ13-C550
Engine power	kW/rpm	162/2000	410/1900
Main winch lifting speed	m/min	70~100	40/70
Max.pulling force of main winch	kN	157	450
Diameter of main winch wire rope	mm	24	38
Length of main winch rope	m	100	130
Swing speed	rpm	2.7	3.27
Traveling speed	km/h	1.35	1.2
Weight of grabs	ton	15	20-45
Groove depth	m	35	90
Groove thickness	mm	300、400、600	800-2500
Time for grab opening	s	2.5	5
Time for grab closing	s	4.8	13
Counterweight mass	ton	10	26
Main machine mass	ton	32	133
