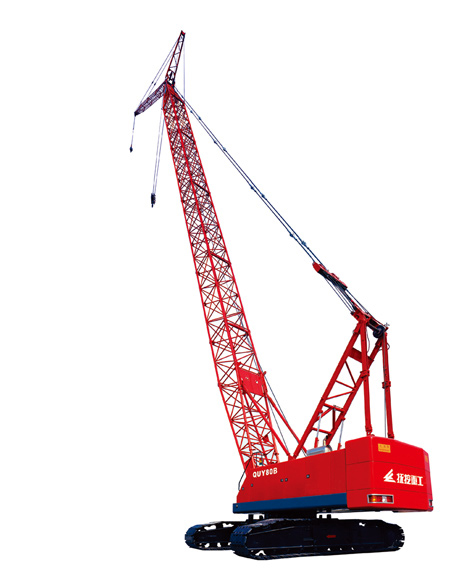

Features:
1. Main components of power system and hydraulic system are imported from USA and Japan;
2. Unique Free Fall on hoist winch improve efficiency
3. Most parts of the crane adopts non-dust baked lacquer automatic assembling line painting;
4. Extendable track frame and Outriggers for easy transportation;
Technical data
|
Item |
Unit |
Data |
||
| Max.rated lifting capacity | t | 80 | ||
| Boom length | m | 13～58 | ||
| Fixed jib length | m | 9～18 | ||
| Max. Length of Boom+ Jib | m | 49+18 | ||
| Hook type | t | 80/50/9 | ||
| Working speed | Wire rope speed | Main winch hoist and lower(rope dia.Φ26mm) | m/min | 0～74 |
| Aux.winch hoist and lower(rope dia.Φ26mm) | m/min | 0～74 | ||
| Boom hoist and lower(rope dia.Φ20mm) | m/min | 0～58 | ||
| Swing speed | r/min | 0～2.0 | ||
| Traveling speed | Km/h | 0～2.2 | ||
| Reevings | 10 | |||
| Single line pull | t | 8 | ||
| Gradeability |
﹪ |
30 | ||
| Engine | Kw/r/min | 209/2000 | ||
| Swing radius | mm | 4820 | ||
| Transportation dimension | mm | 9670×3480×3460 | ||
| Crane mass(with basic boom, 100t hook) | t | 83 | ||
| Ground bearing pressure(including basic boom) | Mpa | 0.082 | ||
| Counterweight | t | 24..6 | ||
